SIP VP-T49G Flagship Smart Video Phone

SIP VP-T49G

SIP VP-T49G

T49G is Yealink's innovative video collaboration phone designed for managers and telecommuters.
Appearance and rich features make it easier and more efficient for users to conduct meetings.

Extreme user experience

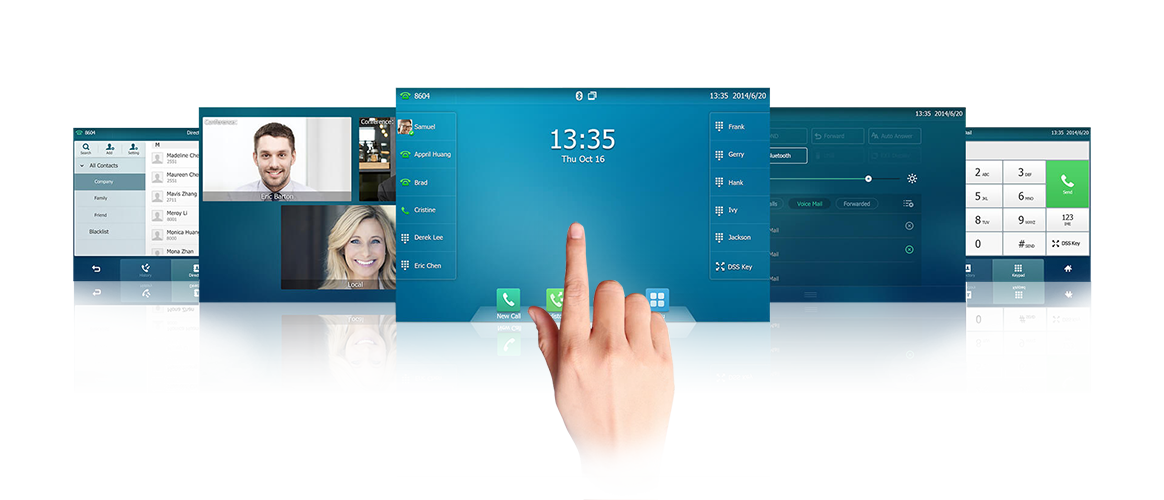

8-inch touch screen for more intuitive operation and smoother visual experience.

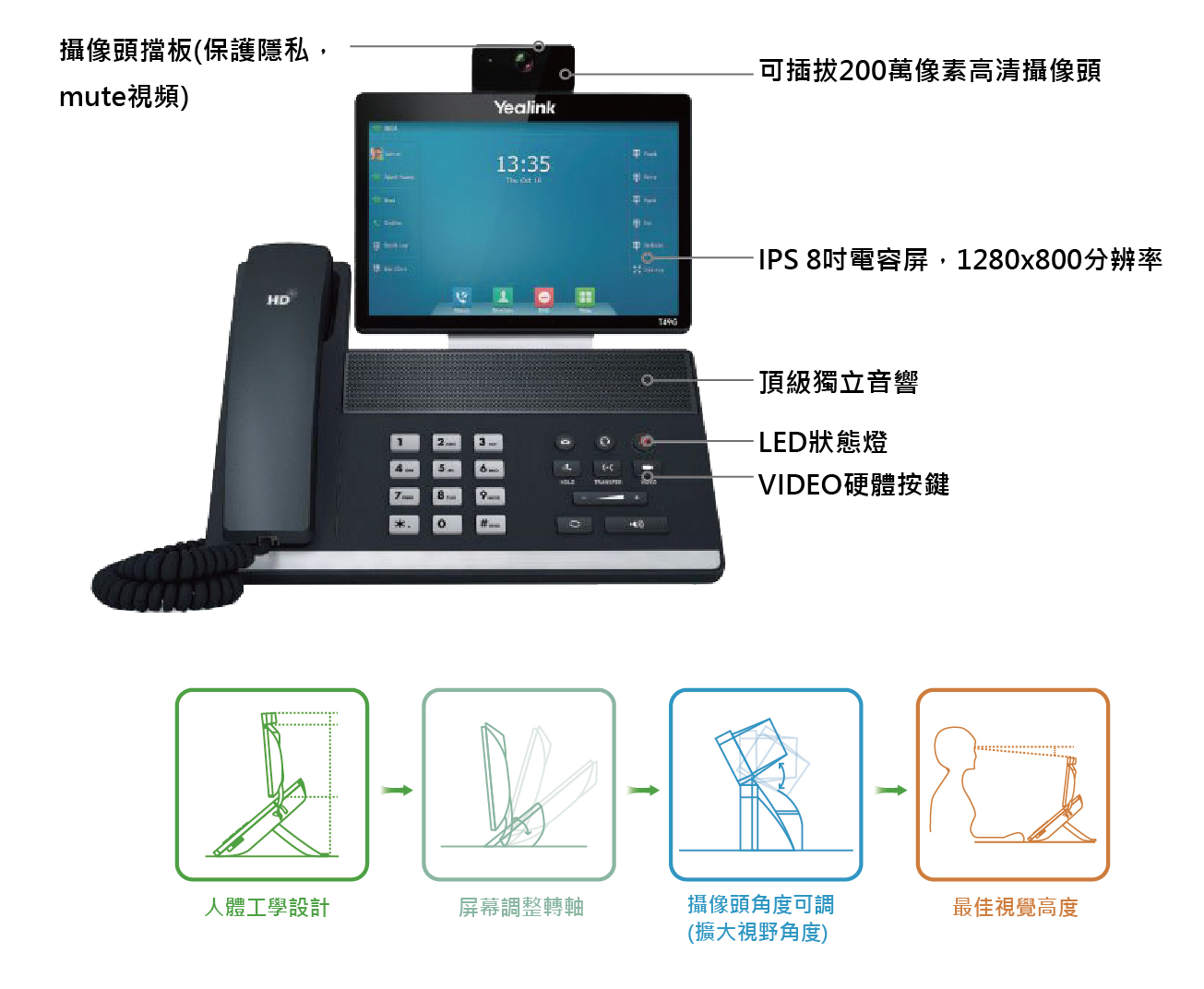

T49G has an industrial-grade 2-megapixel HD camera

T49G's built-in Wi-Fi and Bluetooth module, integrated USB2.0 jack, HDMI jack, camera can move.

Rich contacts for more applications

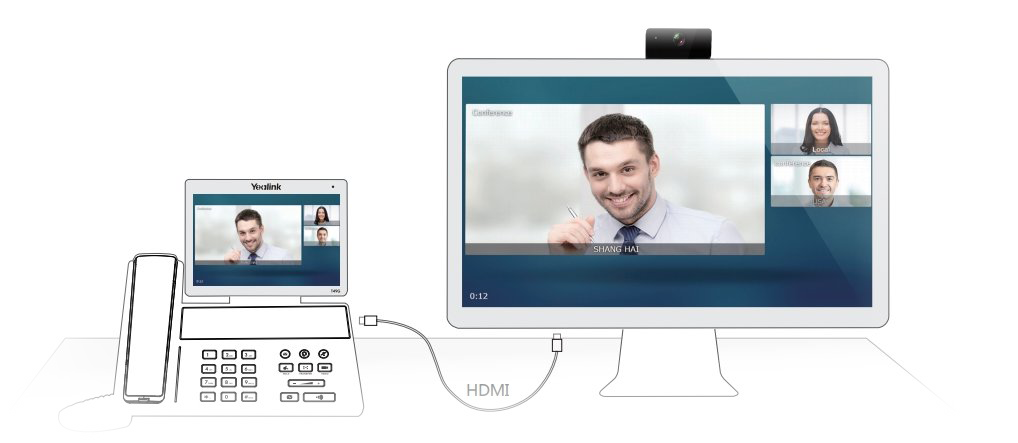

Supports HDMI dual-screen expansion, which can further optimize video conferences.
Instantly turn your desktop phone into a high-quality office video conferencing device.

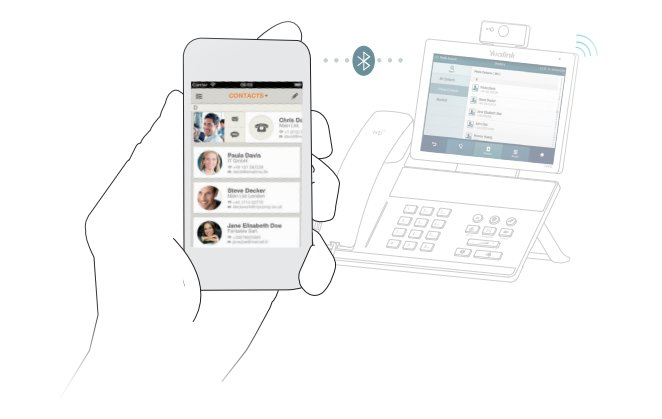

Wireless Bluetooth, get rid of the shackles of desktop

Built-in Wi-Fi and Bluetooth, can connect to wireless network, cooperate with Bluetooth headset or mobile phone.
Allow users to completely get rid of the shackles of their desks and greatly increase flexibility.

Specification

Audio Features
  • HD voice: HD handset, HD speaker
  • Audio codec: AMR-WB (optional), AMR-NB (optional), G.722, G.711 (A/µ), G.729AB, G.723, G.726, iLBC, Opus
  • DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
  • Full-duplex hands-free speakerphone with AEC
  • VAD, CNG, AEC, PLC, AJB, AGC

Video Features
  • 1080p@30fps Full-HD Video call
  • Video codec: H.264 High Profile, H.264, H.263
  • 2 mega-pixel Camera with privacy shutter
  • Horizontal field of view: 63.5°
  • Vertical field of view: 37°
  • Adjustable camera
  • Plug and Play

Display and Indicator
  • 8" 1280 x 800 capacitive touch screen IPS LCD
  • 10 points multi-touch surface
  • LED for call and message waiting indication
  • Intuitive user interface with icons and soft keys
  • National language selection
  • Caller ID with name, number and photo

Phone Features
  • 16 VoIP accounts
  • Call hold, mute, DND
  • One-touch speed dial, hotline
  • Call forward, call waiting, call transfer
  • Group listening, emergency call
  • Redial, call return, auto answer
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Set date time manually or automatically
  • Dial plan, XML Browser, action URL/URI
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
  • Three-way video conferencing
  • Five-way audio/video mixed conferencing
  • Standard HDMI output for connection to monitor
  • USB ports (2.0 compliant) for media and storage applications
  • USB ports (3.0 compliant) for extending camera with USB3.0 cable
  • Notification Center and Control Center
  • Onscreen keyboard
IP-PBX Features
  • Busy Lamp Field (BLF)
  • Bridged Line Appearance (BLA)
  • Anonymous call, anonymous call rejection
  • Remote office, hot desking
  • Message Waiting Indicator (MWI)
  • Voice mail, call park, call pickup
  • Intercom, paging, music on hold
  • Call completion, call recording

Directory
  • Loal phonebook up to 1000 entries
  • Black list
  • XML/LDAP remote phonebook
  • Intelligent search method
  • Phonebook search/import/export
  • Call history: dialed/received/missed/forwarded

Feature keys
  • 29 one-touch DSS keys
  • 8 feature keys: message, headset, mute, hold, transfer, video, redial, speakerphone
  • Volume control keys
  • Illuminated mute key
  • Illuminated headset key
  • Illuminated hands-free speakerphone key

Interface
  • Dual-port Gigabit Ethernet
  • Built-in Wi-Fi (2.4GHz & 5GHz, 802.11a/b/g/n)
  • Built-in Bluetooth 4.0+ EDR
  • 1 x USB port (2.0 compliant)
  • 1 x USB port (3.0 compliant, for camera/USB3.0 cable)
  • 1 x RJ9 (4P4C) handset port
  • 1 x RJ9 (4P4C) headset port
  • 1 x HDMI output port
  • 1 x Security lock port

Management
  • Configuration: browser/phone/auto-provision
  • Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment
  • Auto-provision with PnP
  • Zero-sp-touch, TR-069
  • Phone lock for personal privacy protection
  • Reset to factory, reboot
  • Package tracing export, system log
Other Physical Features
  • Yealink power adapter: AC 100~240V input and DC 12V/2A output
  • Power consumption : 8.0 W-12 W
  • Dimension (W*D*H*T): 273mm*226mm*285mm*42 mm
  • Operating humidity: 10~95%
  • Operating temperature: -10~50°C (+14~122°F)

Network and Security
  • IPv4/IPv6
  • SIP v1 (RFC2543), v2 (RFC3261)
  • Call server redundancy supported
  • NAT traversal: STUN mode
  • Proxy mode and peer-to-peer SIP link mode
  • IP assignment: static/DHCP/PPPoE
  • HTTP/HTTPS web server
  • Time and date synchronization using SNTP
  • UDP/TCP/DNS-SRV(RFC 3263)
  • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
  • SRTP
  • Transport Layer Security (TLS)
  • HTTPS certificate manager
  • AES encryption for configuration file
  • Digest authentication
  • OpenVPN, IEEE802.1X

Package Features
  • Package content:
    • Yealink SIP-T49G IP phone
    • Handset with handset cord
    • Camera
    • Ethernet Cable (2m CAT5E FTP Cable)
    • Stand
    • Quick Start Guide
    • Power Adapter
    • ED10 (Optional)
  • Qty/CTN: 5 PCS
  • N.W/CTN: 12.9 Kg
  • G.W/CTN: 14.0 Kg
  • Giftbox size: 336mm*364mm*112mm
  • Carton Meas: 587mm*348mm*376mm

Compliance
