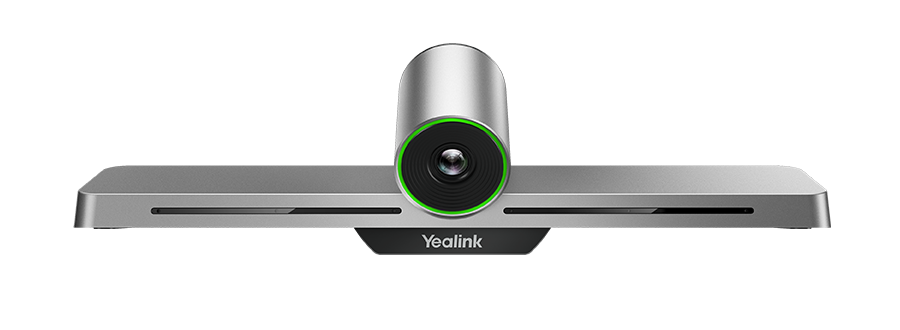

Yealink VC200 Intelligent video conference terminal

Yealink VC200

Yealink VC200

VC200 is a new generation of video conference single-point equipment, suitable for small conference rooms.
Support the most advanced H.265 / HEVC video codec, support Wifi and Bluetooth.

Contact us

4K lens, 103-degree wide viewing angle, immersive visual experience

HD voice technology, 360-degree radio reception, intelligent firewall penetration, no fixed IP required.
Video recording function and playback, support the latest H.265, save up to 50% bandwidth.

Ultra-simple design, complete installation and deployment in one minute

V200 adopts the integrated design of the host and the lens, which can be directly mounted on the TV.
Brings more convenient installation subordinates and a clean and simple operation experience.

Wireless application, cleaner meeting room

30% anti-packet loss function to ensure smooth video conference.
Wireless presentation data sharing.

4x zoom supports 1080P / 30FPS calls

Provide users with a more professional and better conference audiovisual experience.
Effectively meet the needs of video conferences and improve the efficiency of remote communication.

Specification

Package includes:
  • VC200 Codec (integrate codec/camera/microphone/bracket)
  • VCR11 Remote Control
  • PoE Adapter
  • WPP20 Wireless Presentation Pod (optional)
  • VCH50 Video Conferencing Hub (optional)

Ultra HD 4K Camera
  • Ultra HD 4K camera
  • 1920 x 1080 video resolution
  • 30 frame rate
  • 4x e-PTZ camera
  • Horizontal field of view: 103°

Microphone
  • Built-in six beamforming microphone arrays
  • 16ft / 5 meters voice pickup distance
  • Wireless microphone (optional)
  • Conference phone CP960 (optional)

Video Standard and Network Suitability
  • Video codecs: H.265/HEVC, H.264 High Profile, H.264, H.263, H.263+
  • Forward Error Correction (FEC)
  • Anti 30% video packet loss
  • Bandwidth dynamic adaptive adjustment
  • Shared content and audio preference strategy
  • Bandwidth/protocol/audio&video call auto adaptive

Audio Features
  • Audio codecs:
    • Opus, 8~48kHz sampling rate
    • 14kHz bandwidth with G.722.1C
    • 7kHz bandwidth with G.722.1
    • 3.4kHz bandwidth with G.711 (PCMA/PCMU)
    • G.729
    • ARES
  • Audio technology:
    • Acoustic echo cancellation
    • Automatic gain control
    • Yealink Noise Proof Technology
    • CNG, PLC, AJB, De-Rerb

Operating System
  • Based on Android 7.1
Call Features
  • 1080P30 people + 1080P30 content sharing video quality
  • Video Layout: Picture-in-picture (PIP)
  • Video/audio recording and playback
  • Screenshots in USB flash drive or local storage
  • Group dial
  • YMS meeting control:
    • invite/remove
    • mute/unmute participates
    • lock
  • DND (do not disturb), call statistics
  • Auto answer, mute, call waiting
  • Virtual keyboard
  • Local directory: 500 entries
  • Call history: all/missed/received/dialed
  • LDAP phonebook
  • Multi-language support
  • Additional five-way audio call

Standard Communication Protocol
  • H.323/SIP
  • Dual stream protocol: H.239 (H.323)/BFCP (SIP)
  • FECC: H.224/H.281, Sony VISCA and PELCO D/P
  • H.323 protocol suite: H.245, H.225, H.235, H.241
  • Gatekeeper account and SIP account

Network and Security Features
  • Built-in dual-band Wi-Fi (2.4GHz/5GHz):
    • connect to a Wi-Fi network
    • serve as a Wi-Fi hotspot
  • Built-in Bluetooth
  • IPv4 and IPv6, DHCP/static IP
  • HTTP/HTTPS web server
  • RS232/HTTP API for control system integration
  • SRTP/TLS, AES 256-bit encryption
  • QoS: 802.1p/q, Diff-serv
  • VLAN, IEEE802.1X, LLDP-MED
  • Anti-attack
  • Network diagnosis: Ping, trace route
  • Time and date synchronization using SNTP
  • Built-in certificate

NAT and Firewall Traversal
  • ICE/TURN/STUN
  • H.460
  • NAT (manual/auto mode)
  • Yealink intelligent firewall traversal
  • Open VPN
Configuration Management
  • Configuration via browser/display/auto-provisioning
  • Virtual remote control
  • Firmware upgrading, factory resetting
  • Export or import configuration
  • System log exporting

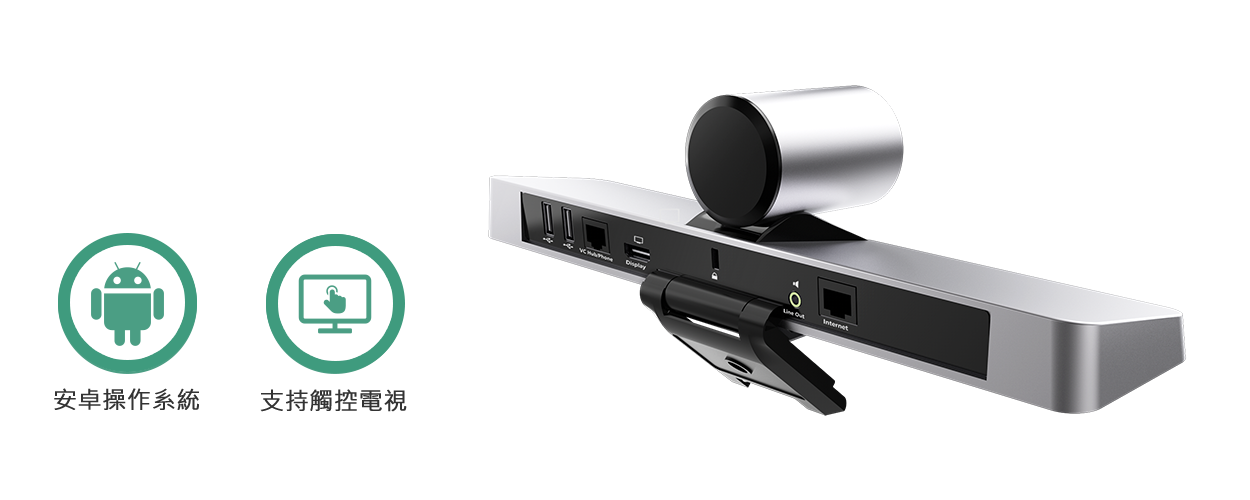

VC200 Codec Connections
  • 1 x HDMI output (CEC supported)
  • 1 x Yealink extension port (RJ-45) connect to VCH50/CP960 Phone
  • 1 x 10/100M Ethernet port
  • Power over Ethernet (IEEE 802.3af)
  • 2 x USB 2.0
  • 1 x Line-out (3.5mm)
  • 1 x security lock slot
  • 1 x reset slot

Other Physical Features
  • Color: Space Silver
  • Capacity: 16GB (Available: 8GB)
  • Yealink PoE Adapter: AC 100~240V input
  • Power consumption (PSU): Idle＜6.5W; Normal: 7W; MAX: 8W
  • USB Output: 5V 500mA
  • Dimension (W.D.H):
    • VC200 codec: 300 mm x 70 mm x 86.6 mm
    • VCR11: 190mm x 55mm x 24mm
  • Operating humidity: 10~95%
  • Operating temperature: 0~40°C
  • Storage temperature: -30~70°C

Package Features
  • Qty/CTN: 4 PCS
  • Giftbox size: 355mm*135mm*140mm
  • Carton Meas: 375mm*335mm*355mm

Compliance
