Yealink VC500 Intelligent video conference terminal

Yealink VC500

Yealink VC500

VC500 is a new generation of video conference single-point equipment, suitable for small and medium conference rooms.
Support the most advanced H.265 / HEVC video codec.

Contact us

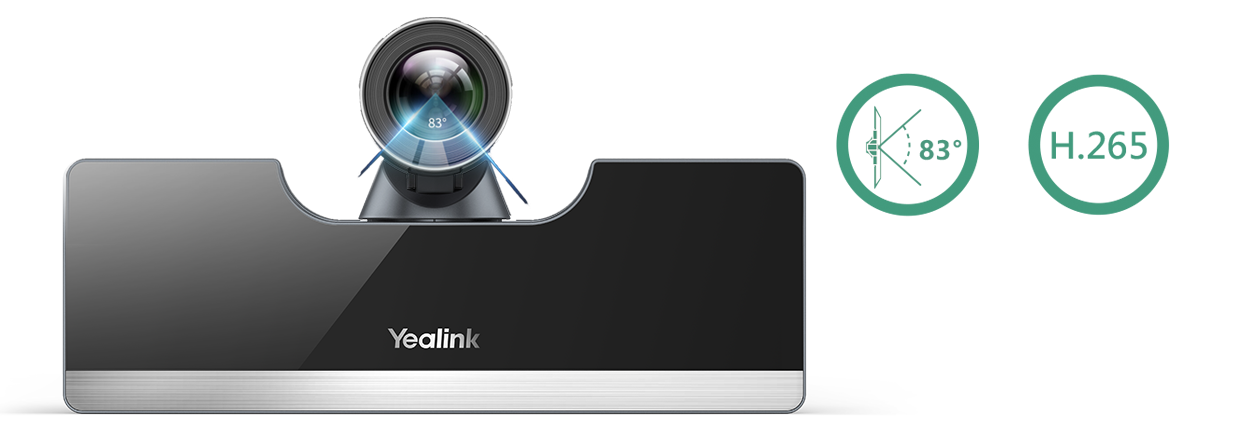

83 ° large viewing angle, immersive visual experience

Supports a large angle of 83 °, without distortion or distortion of the picture.
Provide users with a more professional and better conference audiovisual experience.

Ultra-simple design, complete installation and deployment in one minute

VC500 adopts the integrated design of the host and the lens, which can be directly mounted on the TV.
Brings more convenient installation subordinates and a clean and simple operation experience.

Wireless application, cleaner meeting room

30% anti-packet loss function to ensure smooth video conference.
Wireless presentation data sharing.

5x zoom supports 1080P / 60FPS calls

Provide users with a more professional and better conference audiovisual experience.
Effectively meet the needs of video conferences and improve the efficiency of remote communication.

Specification

Package includes
  • VC500 Codec (integrate camera)
  • 2 x Wireless Microphones with DD10 DECT Dongle (VC500-Mic)

Full-HD PTZ Camera
  • 1920 x 1080 video resolution
  • 60 frame rate
  • 5x optical zoom PTZ camera
  • Horizontal field of view: 83°
  • Vertical field of view: 52°
  • Pan angel range: +/- 30°
  • Tilt angel range: +/- 20°
  • Automatic face beauty

Video Standard and Network Suitability
  • Video codecs: H.265/HEVC, H.264 High Profile, H.264, H.263, H.263+
  • Forward Error Correction (FEC)
  • Anti 30% video packet loss
  • Bandwidth dynamic adaptive adjustment
  • Shared content and audio preference strategy
  • Bandwidth/protocol/ auto adaptive

Audio Features
  • Audio codecs:
    • Opus, 8~48kHz sampling rate
    • 14kHz bandwidth with G.722.1C
    • 7kHz bandwidth with G.722.1
    • 3.4kHz bandwidth with G.711 (PCMA/PCMU)
  • Audio technology:
    • Acoustic echo cancellation
    • Automatic gain control
    • Yealink Noise Proof Technology
    • CNG, PLC, AJB, De-Rerb

CP960 Conference Phone（VC500-Phone）
  • 5-inch multi-touch screen with 720x1280 resolution
  • Speaker
  • Built-in 3-microphone array
  • 20ft/360° voice pickup range
  • 2 X Wired Microphone CPE90
  • CPW90 Wireless Microphone KIT (VC500-Mic)
  • DECT Technology
  • 800mAh battery capacity
  • 24-hour talking time, 7-day standby time
  • Indoor range: 50m
  • Outdoor Range: 300m (in ideal conditions)
  • 10-foot (3-meter) 360° voice pickup
  • Mute the microphone with touchpad
Call Features
  • 1080p60 people + 1080P30 content sharing video quality
  • Video Layout: Picture-in-picture (PIP)
  • Video/audio recording and playback
  • Dual displays and ‘focus’ feature
  • Screenshots in USB flash drive
  • Group dial
  • YMS meeting control:
    • invite/remove
    • mute/unmute participates
    • lock
  • DND (do not disturb)
  • Call statistics
  • Auto answer, mute, and call waiting
  • Virtual keyboard
  • Local directory: 500 entries
  • Call history: all/missed/received/dialed
  • LDAP phonebook

Standard Communication Protocol
  • H.323/SIP
  • Dual stream protocol: H.239 (H.323)/BFCP (SIP)
  • FECC: H.224/H.281, Sony VISCA and PELCO D/P
  • H.323 protocol suite: H.245, H.225, H.235, H.241
  • Gatekeeper account and SIP account

VC500 Codec Connections
  • 2 x HDMI output
  • 1 x Yealink extension port (RJ-45) connect to VCH50/VCM34
  • 1 x 10/100/1000M Ethernet port
  • 2 x USB 2.0
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

VCH50 Connections
  • 1 x RJ45 port connect to VC500 codec
  • 1 x RJ45 port connect to VCM34
  • 1 x HDMI input for content sharing (with audio)
  • 1 x Mini-DP input for content sharing (with audio)
  • 1x USB 2.0 for recording
Other Physical Features
  • Color: Space Silver
  • External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
  • Wall/TV mounted shelf with screws
  • Power consumption (PSU): Idle＜7.8W, normal operating: 8W; MAX: 11.8W
  • Dimension (W.D.H):
    • VC500 codec: 300 mm x 99 mm x 165.3 mm
    • VCR11: 190 mm x 55 mm x 24 mm
  • Operating humidity: 10~95%
  • Operating temperature: 0~40°C
  • Storage temperature: -30~70°C

Compliance
