VC800 is a second-generation full-HD video conference system introduced by Yealink.
With the strongest embedded MCU, it can support 24 sub-point HD video conferences and two virtual conference rooms.

Contact us

Easily join meetings and build easier

VC800 adopts all in one design to combine video host and lens, only one RJ45 network cable is required.
You can connect to the monitor from the conference room desktop.

Quality full-duplex microphone

5-inch high-definition touch screen with Harman Kardon speakers for a premium audio experience.
6 meters high-quality full-duplex call, support 360-degree radio, echo suppression.

Support H.265 codec technology

Achieve low-frequency wide-height resolution, 512k can reach FullHD1080P picture quality.

Integration and compatibility

Support H.323 / SIP, compatible with video terminal, MCU, cloud platform,
Integration with Yealink YMS (Yealink meeting server) and cloud platform services to easily join meetings.

Specification

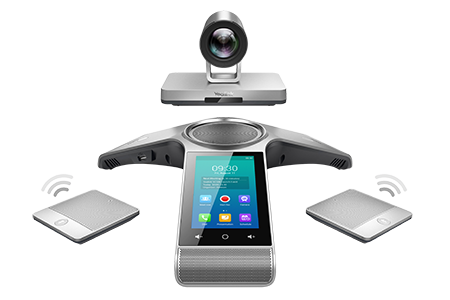

Package includes
  • VC800 Codec (integrate camera)
  • CP960 Conference Phone (VC800-Phone)
  • CTP20 Collaboration Touch Panel (VC800-VCM-CTP)
  • 2 x VCM34 Video Conferencing Microphone Arrays(VC800-VCM-CTP)
  • VCR11 Remote Control
  • VCH50 Video Conferencing Hub (optional)
  • Cable Bundle

Full-HD PTZ Camera
  • 1920 x 1080 video resolution
  • 60 frame rate
  • 12x optical zoom PTZ camera
  • Horizontal field of view: 70°
  • Vertical field of view: 42°
  • Pan angel range: +/- 100°
  • Tilt angel range: +/- 30°

Multipoint Capacity
  • Built-in multipoint up to 24 sites at 1080p30
  • Multipoint license for 8/16/24 sites
  • Supports two virtual meeting rooms
  • Additional five-way audio call
  • Mixed protocols, codecs, bandwidth, resolution and frame rate

Video Standard and Network Suitability
  • Video codecs: H.265/HEVC, H.264 High Profile,H.264, H.263
  • Bandwidth dynamic adaptive adjustment
  • Forward Error Correction (FEC), anti 30% video packet loss and 70% audio packet loss
  • Shared content and audio preference strategy
  • Bandwidth/protocol/auto adaptive

CP960 Conference Phone (VC800-Phone)
  • 5-inch multi-touch screen with 720x1280 resolution
  • Speaker
  • Built-in 3-microphone array
  • 20ft/360° voice pickup range
  • Supports 2 wireless (or wired) expansion mic
  • Audio Features:
    • Opus, 8~48kHz sampling rate
    • 14kHz bandwidth with G.722.1C
    • 7kHz bandwidth with G.722.1
    • 3.4kHz bandwidth with G.711 (PCMA/PCMU)
    • G.729
    • ARES
  • Audio technology:
    • Acoustic echo cancellation
    • Automatic gain control
    • Yealink Noise Proof Technology
    • CNG, PLC, AJB, De-Rerb
Call Features
  • 1080p60 people + 1080P30 content sharing video quality

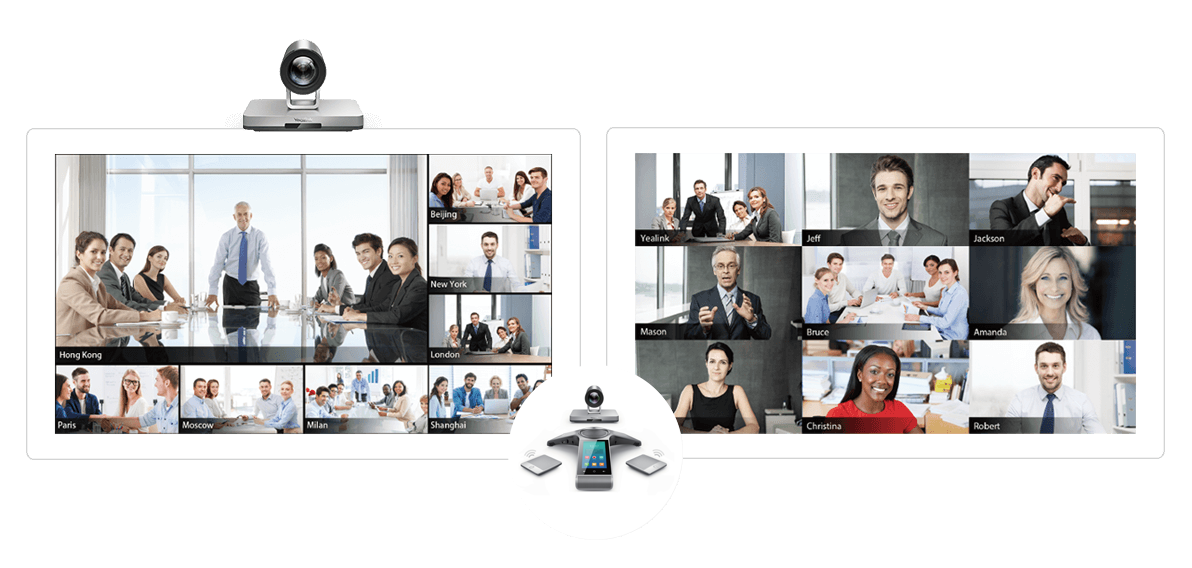

  • Video Layout:
    • Voice activation (onePlusN)
    • onePlusN, maximum 1+7 viewable participates
    • N*N, maximum 3*3 viewable participates
    • Picture-in-picture (PIP) , full-screen
  • Video/audio recording and playback
  • Dual displays and ‘focus’ feature
  • Screenshots in USB flash drive
  • Group dial
  • Meeting control:
    • invite/remove
    • mute/unmute participates (only for Yealink Meeting Server)
    • lock
  • DND (do not disturb), call statistics
  • Auto answer, mute, and call waiting
  • Virtual meeting room password
  • Virtual keyboard
  • Local directory: 500 entries
  • Call history: all/missed/received/dialed
  • LDAP phonebook
  • Multi-language support

Standard Communication Protocol
  • H.323/SIP
  • Dual stream protocol: H.239 (H.323)/BFCP (SIP)
  • FECC: H.224/H.281, Sony VISCA and PELCO D/P
  • H.323 protocol suite: H.245, H.225, H.235, H.241
  • Gatekeeper account and SIP account

Compatible Cloud Platforms
  • Yealink Cloud Management Service
  • Yealink Meeting Server
  • StarLeaf/UC OpenCloud, supports QCP code
  • Pexip/Zoom/BlueJeans/EasyMeet/Videxio

Network and Security Features
  • IPv4 and IPv6, DHCP/static IP
  • HTTP/HTTPS web server
  • RS232/HTTP API for control system integration
  • SRTP/TLS, AES 256-bit encryption
  • QoS: 802.1p/q, Diff-serv
  • VLAN, IEEE802.1X, LLDP-MED
  • Anti-attack
  • Network diagnosis: Ping, trace route
  • Time and date synchronization using SNTP
  • Built-in certificate
NAT and Firewall Traversal
  • NAT (manual/auto mode)
  • ICE/TURN/STUN
  • Yealink intelligent firewall traversal
  • Open VPN 、H.460

Configuration Management
  • Configuration via browser/display/CTP20/auto-provisioning
  • Virtual remote control
  • Firmware upgrading, factory resetting
  • Export or import configuration
  • System log exporting

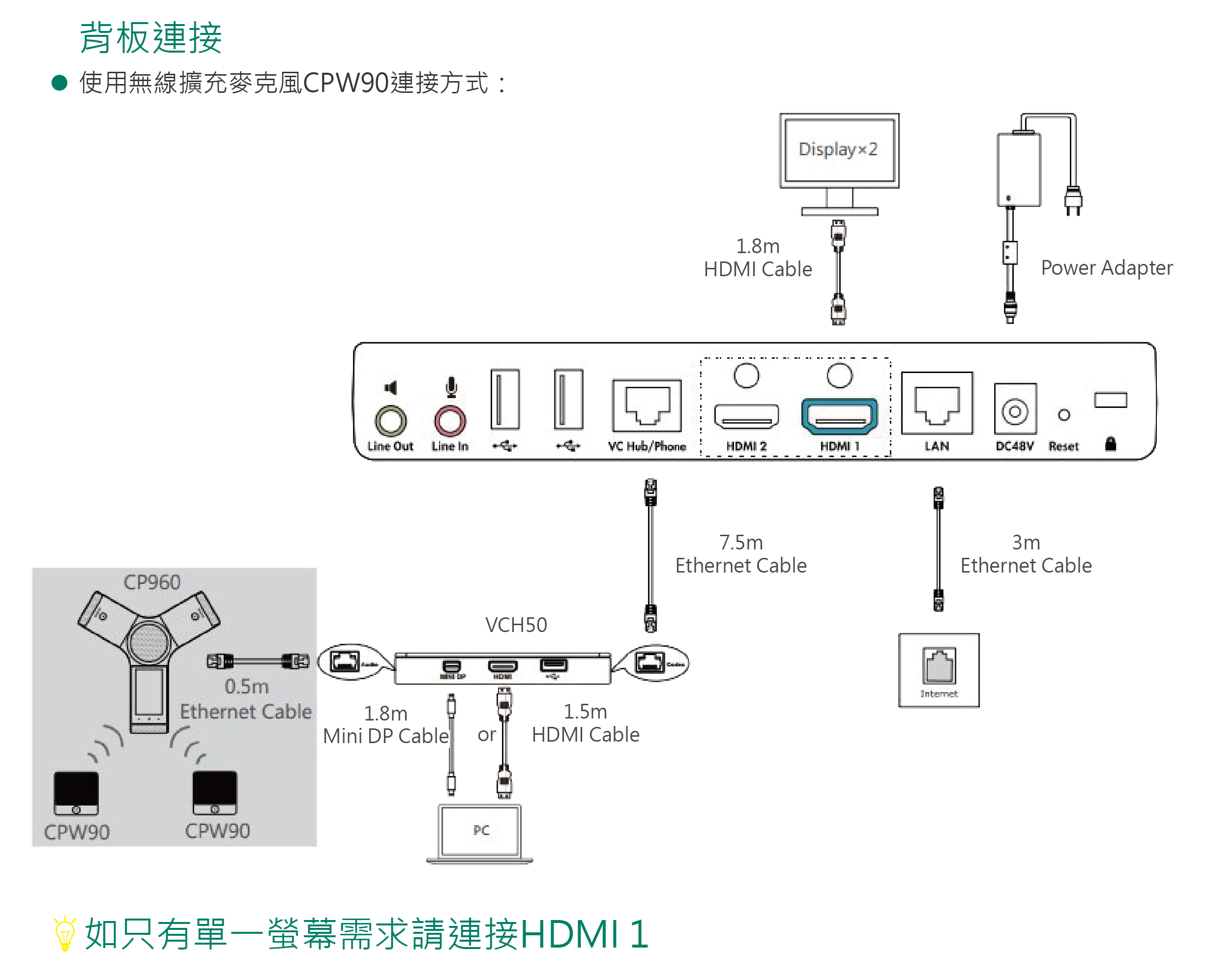

VC800 Codec Connections
  • 2 x HDMI output (supporting CEC function)
  • 1 x Line-in (3.5mm)
  • 1 x Line-out (3.5mm)
  • 1 x Yealink extension port (RJ-45) connect to VCH50/VCM34
  • 1 x 10/100/1000M Ethernet port
  • 2 x USB 2.0
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

VCH50 Connections
  • 1 x RJ45 port connect to VC800 codec
  • 1 x RJ45 port connect to VCM34
  • 1 x HDMI input for content sharing (with audio)
  • 1 x Mini-DP input for content sharing (with audio)
  • 1 x USB 2.0 for recording

Other Physical Features
  • Color: Space Silver
  • External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
  • Wall/TV mounted shelf with screws
  • Power consumption (PSU): Idle＜16W, normal operating: 17W; MAX: 21W
  • Dimension (W.D.H):
    • VC800 codec: 235 mm x 172 mm x 169 mm
    • CP960: 338mm x 338mm x 74mm
    • VCR11: 190mm x 55mm x 24mm
  • Operating humidity: 10~95%
  • Operating temperature: 0~40°C
  • Storage temperature: -30~70°C

Package Features
  • N.W/CTN: 6.6 kg
  • G.W/CTN: 7.8 kg
  • Giftbox size: 414mm*402mm*384mm

Compliance
